ST04: Roadside Lighting (Afton Mountain Exit 99 Interchange Lighting) Diagrams

There are two diagrams below that represent this service package. The first is an interconnect diagram that just shows what elements are connected to each other. The second is an information flow diagram that shows the information flowing between the connected elements.

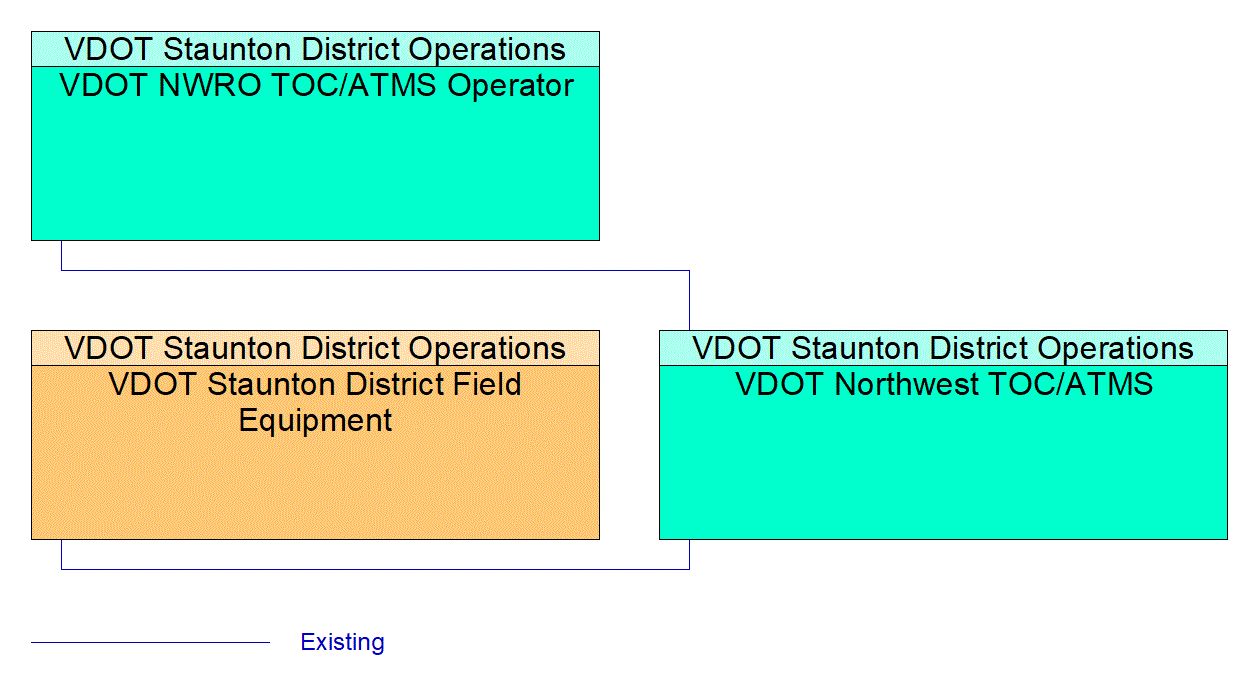

ST04: Roadside Lighting (Afton Mountain Exit 99 Interchange Lighting) Interconnect Diagram

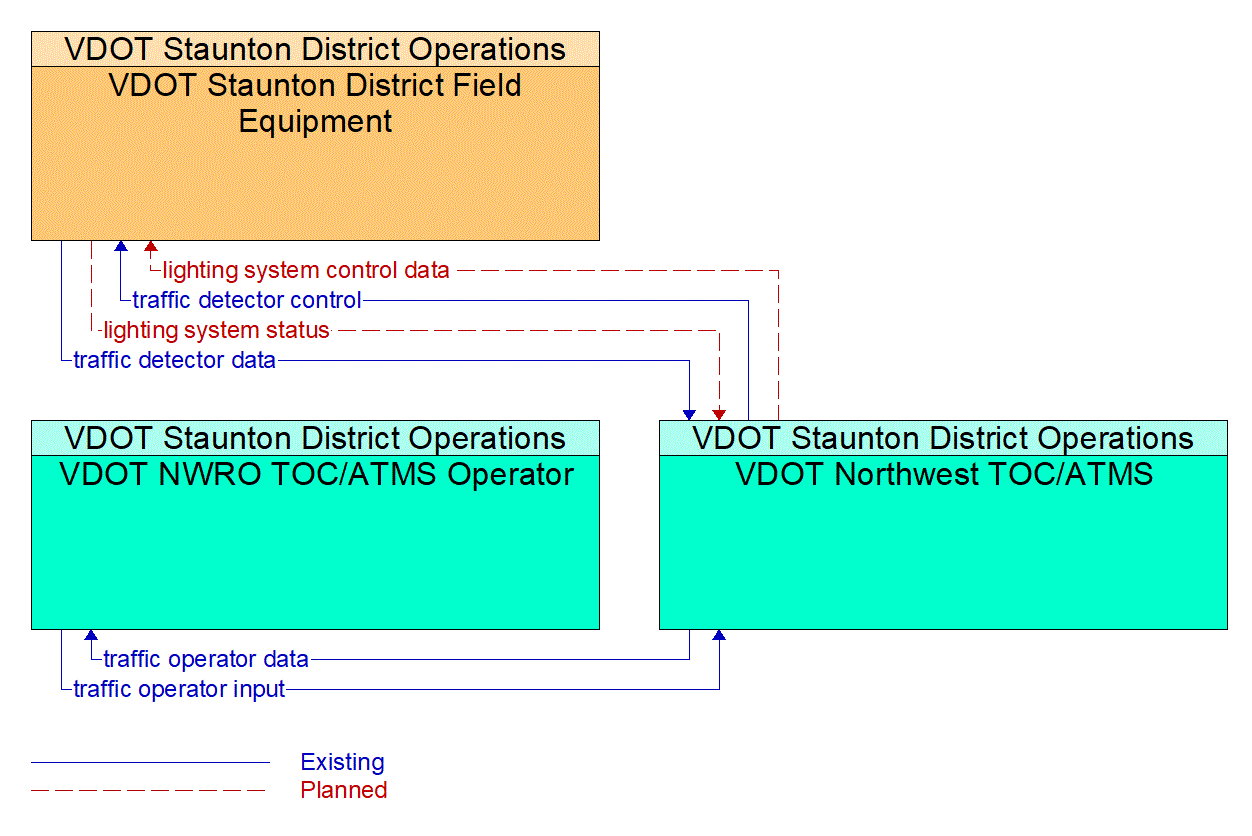

ST04: Roadside Lighting (Afton Mountain Exit 99 Interchange Lighting) Information Flow Diagram
