TM06: Traffic Information Dissemination (Afton Mountain Exit 99 Interchange Lighting) Diagrams

There are two diagrams below that represent this service package. The first is an interconnect diagram that just shows what elements are connected to each other. The second is an information flow diagram that shows the information flowing between the connected elements.

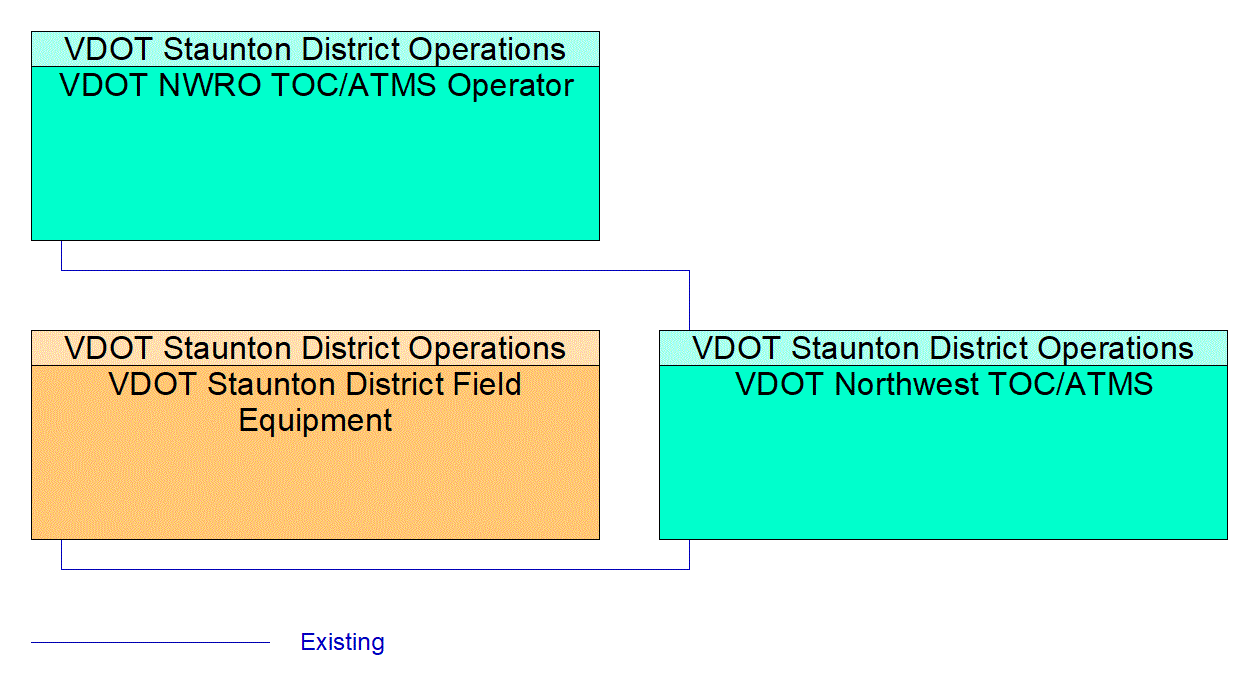

TM06: Traffic Information Dissemination (Afton Mountain Exit 99 Interchange Lighting) Interconnect Diagram

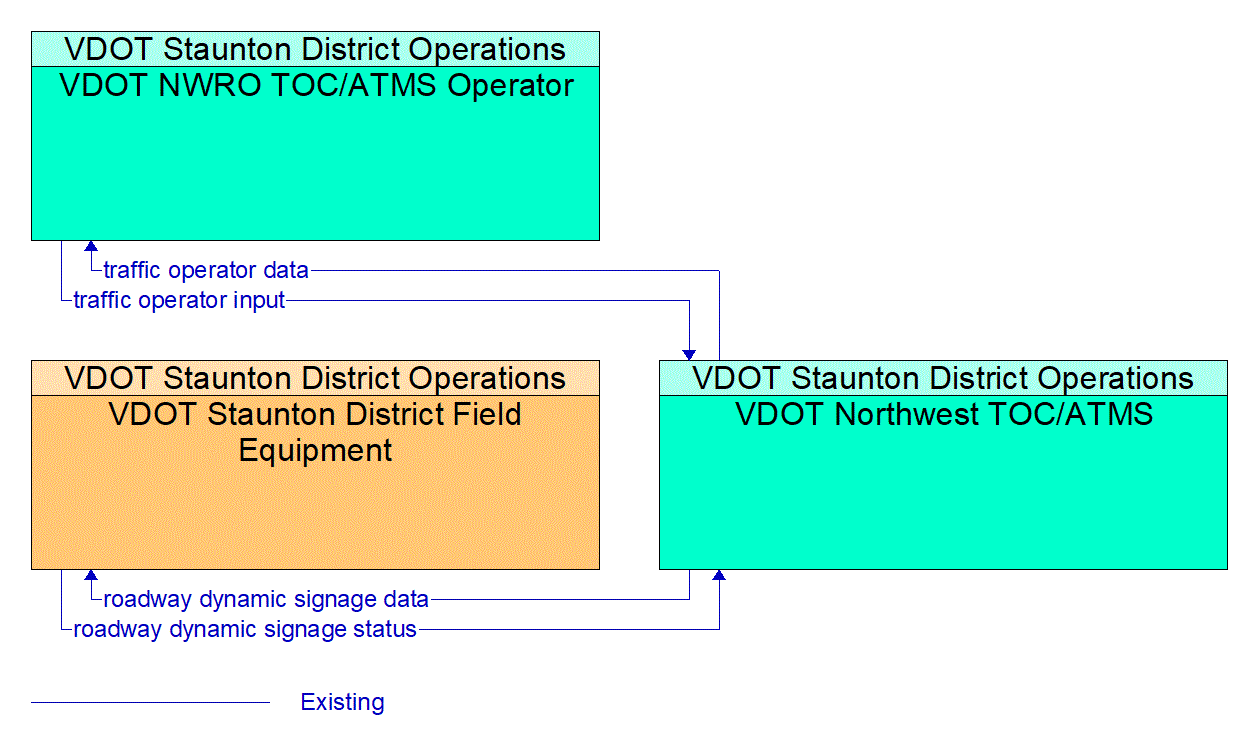

TM06: Traffic Information Dissemination (Afton Mountain Exit 99 Interchange Lighting) Information Flow Diagram
