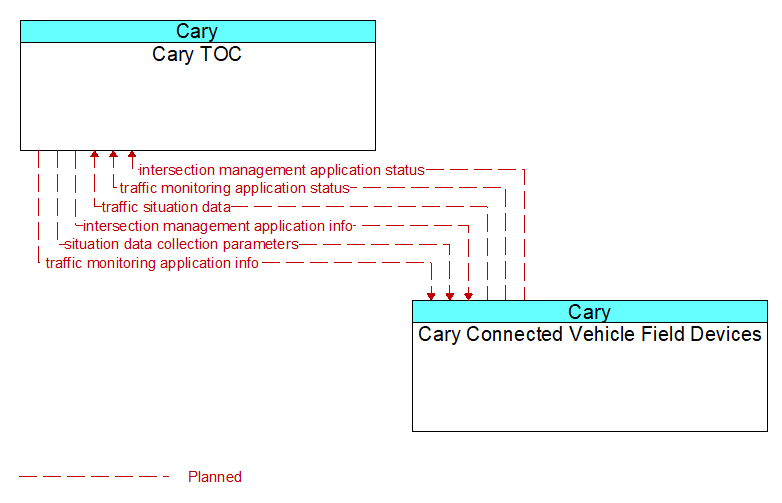

Interface: Cary TOC - Cary Connected Vehicle Field Devices
Architecture Flow Definitions
intersection management application info (Planned) Applicable ITS Standards
Intersection and device configuration data, including intersection geometry, and warning parameters and thresholds. This flow also supports remote control of the application so the application can be taken offline, reset, or restarted.
intersection management application status (Planned) Applicable ITS Standards
Infrastructure application status reported by the RSE. This includes current operational state and status of the RSE and a log of operations.
situation data collection parameters (Planned) Applicable ITS Standards
The parameters that are used to control the flow of situation data from the RSE. This flow identifies the type of data/snapshots that are requested from passing vehicles and reporting parameters such as snapshot frequency, filtering criteria (data thresholds for reporting), and reporting interval that control the type and volume of data reported to the back office center.
traffic monitoring application info (Planned) Applicable ITS Standards
Traffic monitoring application parameters and thresholds that control the filtering, aggregation, and range of measures that are collected, derived, and reported. This flow also supports remote control of the application so the application can be taken offline, reset, or restarted.
traffic monitoring application status (Planned) Applicable ITS Standards
Traffic monitoring application status reported by the RSE. This includes current operational state and status of the RSE and a record of system operation.
traffic situation data (Planned) Applicable ITS Standards
Current, aggregate traffic data collected from connected vehicles that can be used to supplement or replace information collected by roadside traffic detectors. It includes raw and/or processed reported vehicle speeds, counts, and other derived measures. Raw and/or filtered vehicle control events may also be included to support incident detection.
